Discussion Starter #1 (Edited)

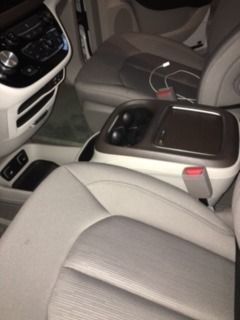

'17 Touring with the low console.

It took a few hours but well worth it. Easier than my 300C grille conversion and Accord factory LED headlight install. I did not attempt any wiring of the cup holder light which I've never had on any car including MB, BMW, Lexus and I don't need it on this car.

Superconsole: $125 +$45 shipping ebay, included metal bracket mount.

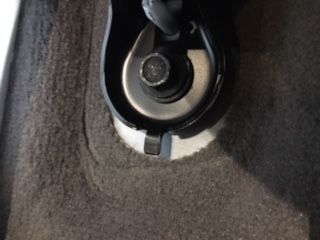

The stock low console has 2 front bolts under the front rubber mat that need to be loosened (not removed). All bolts are 10mm

Two additional screws under the center rubber cell holder need to be removed.



The front of the console has slots (with the bolts you already loosened) to allow the console to slide to the rear to expose the 12V and USB plugs.

Disconnect the 12v and USB plugs then remove the console.

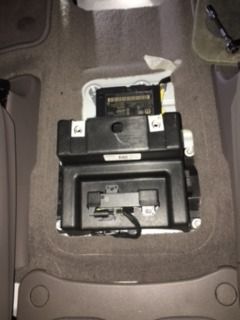

Disconnect the proximity fob wire on the plastic mounting base. Remove 4 bolts on the plastic mounting base. Slide out the fob from the tabs.

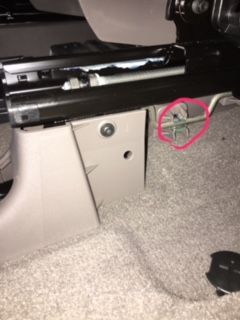

Reconnect the fob wire. I used 2 way tape on the fob and attached to the floor.

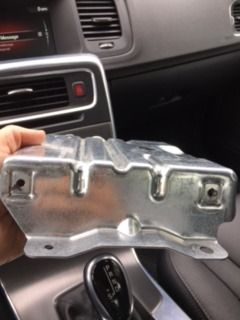

Take the metal mount base to the hardware store and purchase 4 correct metric bolts long enough to pass through the plastic console mount hole and into the threads of the metal plate. Plastic panels pop off the new console to access mount holes and test fit with your new bolts.

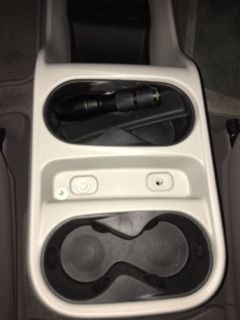

Remove USB and 12V unit from the old console by pressing 6 tabs on the rear and snap into the new console.

The new console is attached at the rear to the metal plate with the 4 bolts you purchased, you will not use the stock rear screws.

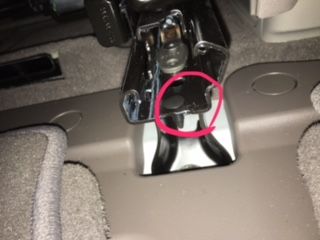

Mount the metal plate with the 4 bolts from the stock plate. Make sure proximity fob is secure however you mount it.

You need to remove the inner plastic seat rails to access the rear mount holes. It is accessed from under the seats.

Open the Stow N Go. Remove the plastic push pin at the rear of the seat rail, slide the rear plastic cover off.

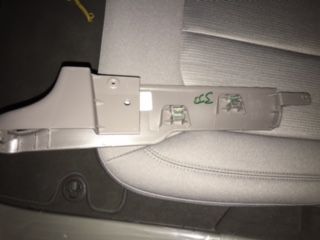

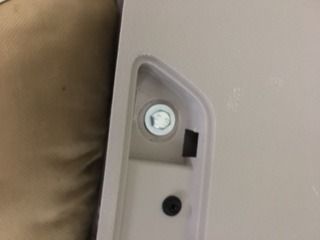

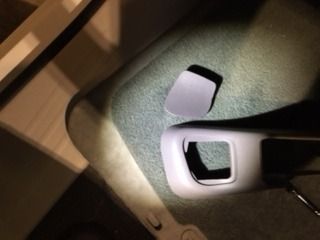

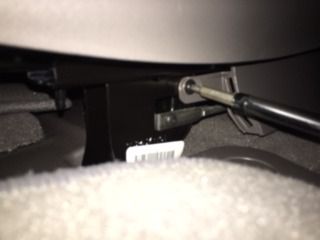

At the rear, there is a torx screw on the outer rail to remove. At the front of the seat rail, a torx screw needs to be removed on the inner side. Once loose, pop the metal tabs off the side metal rails. Lift the front floor mat and slide the plastic rail off. The plastic window at the front does not need to be removed but there is a female tab that needs to mate up with a metal tab up front that is easier to connect with the window open when re installing.












Slide the new console into position (2 people). Connect the 12V and USB wires and slide it all the way forward so the rear mount holes line up. Do not tighten the bolts.

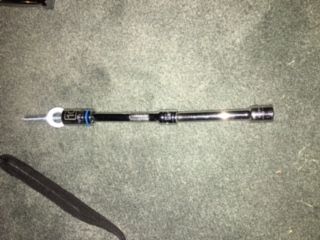

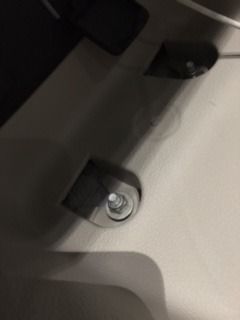

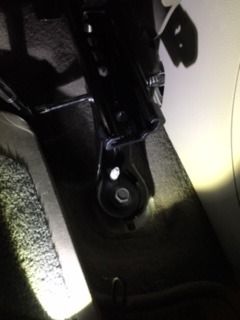

From under the seat, insert the bolts with washers using an extension for access. Rock a bit to line up the holes if necessary. Do not tighten. Repeat for the other 3 bolts then tighten all bolts including the fronts.

Snap on the plastic console panel that covers the bolts before installing the seat rail plastic (easier to do with more space. Re install the plastic rail covers.








·
